Technical Deep Dive: The Monero Mining Campaign

A granular look at an infection cluster identified in late 2025 — tracing the attackers’ tradecraft, tooling, and operational security posture from the initial social-engineering lure all the way to the execution of privileged instruction sets in Ring 0.

Executive summary

In the contemporary threat landscape, while ransomware grabs headlines with high-impact disruptions, cryptojacking operations have quietly evolved into sophisticated, persistent threats. This report details a comprehensive forensic analysis of a recently identified cryptocurrency mining campaign. This operation distinguishes itself not merely by its payload but by its high level of technical integration and redundant persistence mechanisms.

Analysis of the recovered dropper, persistence triggers, and mining payload reveals a sophisticated, multi-stage infection prioritizing maximum cryptocurrency mining hashrate, often destabilizing the victim system. Furthermore, the malware exhibits worm-like capabilities, spreading across external storage devices, enabling lateral movement even in air-gapped environments.

This blog dissects the malware operation from the initial social-engineering lure to the execution of privileged instruction sets in Ring 0, offering a granular view of the attackers’ tradecraft, tooling, and operational security posture.

1. Introduction: The evolution of commodity cryptojacking

Cryptojacking, the unauthorized use of a victim’s computing resources to mine cryptocurrency, has transitioned from a browser-based nuisance (typified by Coinhive scripts) to a system-level threat utilizing advanced malware techniques. The economic incentives for attackers are clear: unlike ransomware, which requires a victim to pay, cryptojacking generates revenue continuously as long as the infection persists. To maximize this revenue, attackers must solve two problems: longevity (persistence) and efficiency (hashrate).

Scope of analysis

This report analyzes a specific infection cluster identified in late 2025. The primary artifacts include a deceptive installer, a legitimate but vulnerable driver, and a customized wrapper for the XMRig miner.

2. Infection vector and social engineering

The entry point for this campaign relies on a classic but highly effective social engineering tactic: the promise of free premium software. The distribution vector is identified as pirated software bundles, specifically masquerading as legitimate installers for office productivity suites.

3. The “Explorer.exe” controller: Architecture and operational philosophy

The Explorer.exe binary [MD5: bb97dfc3e5fb8109bd154c2b2b2959da] functions as the primary orchestration node for the infection. In traditional malware design, functionality is often compartmentalized into a linear execution flow: a dropper downloads a payload, executes it, and exits. Explorer.exe (controller), however, operates as a persistent state machine. It determines its behavioral mode based on the specific command-line arguments passed to it during execution, allowing a single binary file to serve multiple distinct operational roles within the infection lifecycle: installer, watchdog, payload manager, and cleaner.

3.1 The “Brain” vs. “Brawn” separation

A key insight derived from reverse engineering of Explorer.exe is the deliberate architectural separation of command logic (“Brain”) from execution logic (“Brawn”). This modular design principle enhances the stability and resilience of the infection.

• The Brain (Explorer.exe): Handles logic, monitoring, timing, and decision-making. It is designed to be lightweight and stable. It does not perform the heavy computational lifting (mining) or the high-risk aggressive actions (process termination) directly. This minimizes the risk of the controller crashing or triggering behavioral heuristics in security software.

• The Brawn (Payloads):

  • Mining operations: Handled by Microsoft Compatbility Telemetry.exe, a wrapper for the XMRig miner.
  • Enforcement operations: Watchdogs.
  • Kernel access: Handled by WinRing0x64.sys, a vulnerable driver exploited to gain Ring 0 access.

3.2 The “Cultural Profiling”: Command line parameters and state control

The malware’s internal logic is heavily laden with references to the anime series Re:Zero - Starting Life in Another World. The use of strings such as Re:0 and barusu suggests a specific psychological profile of the malware author.

These references are not mere superficial additions but are functionally integrated into the control flow. Specifically, the 002 Re:0 argument initiates the “Active Infection” mode — a direct parallel to the anime protagonist’s “Return by Death” ability, a metaphor that perfectly illustrates the malware’s persistence mechanism: much like the protagonist’s resurrection, if the infection is terminated, its watchdog components ensure it “returns.”

3.3 The “Time Bomb” logic: A campaign lifecycle

A significant discovery within the sub_14000D180 function is a hardcoded temporal check, serving as a “kill switch” or “time bomb.” This mechanism operates by retrieving the local system time and comparing it against a predetermined deadline: December 23, 2025.

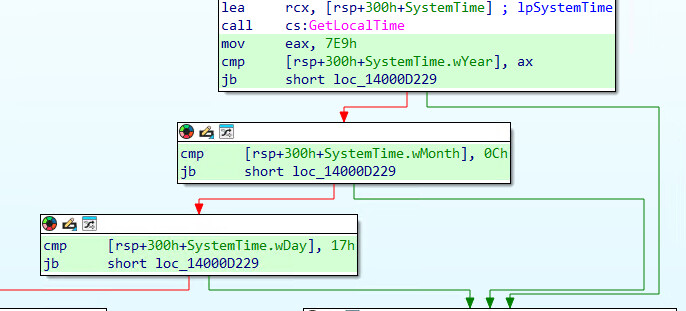

Figure 1: Check for a specific date — the Time Bomb logic.

The malware’s behavior diverges based on this date:

• Active phase (Pre-Dec 23, 2025): The malware proceeds with the standard infection routine, installing the persistence modules and launching the miner.

• Expiration phase (Post-Dec 23, 2025): This suggests that the campaign is not intended to be an indefinite operation. It implies a “fire-and-forget” lifecycle, possibly timed to coincide with the expiration of rented Command & Control (C2) infrastructure, a predicted shift in the cryptocurrency market (specifically Monero difficulty adjustments), or a planned transition to a new malware variant.

3.4 The “Barusu” protocol (cleanup routine)

When the binary is launched with the barusu argument — triggered either by the Time Bomb or potentially by a manual command from the threat actor — it enters a comprehensive cleanup mode designed to wipe the infection from the host. This is not a chaotic self-destruct; it is a controlled decommissioning of the infection.

Figure 2: The else block that checks the barusu flag.

The Cleanup sequence:

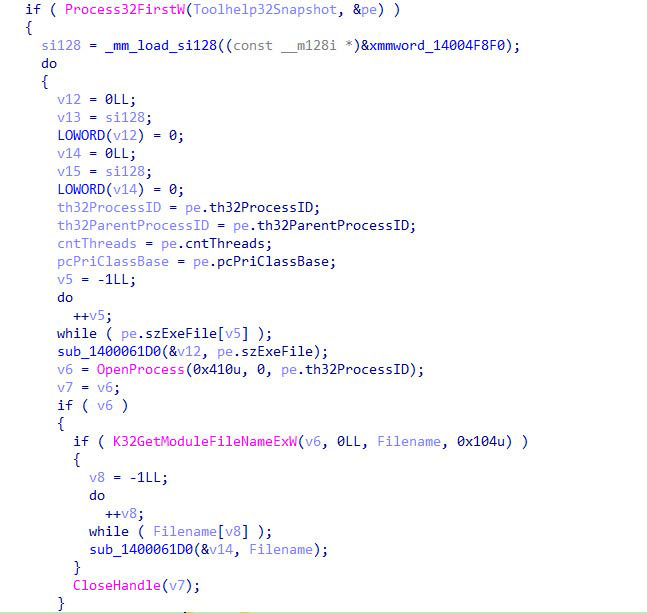

Figure 3: Process list query loop.

1. Snapshot & hunt: Calls the Process Scanner (sub_14000B700) to generate a dynamic list of all running processes on the host.
2. Targeted termination: Iterates through the list, looking for specific operational components:
   • Microsoft Compatbility Telemetry.exe (The Miner)
   • explorer.exe (The Process killer)
   • msedge.exe (Persistence Watchdog 1)
   • ksomisc.exe (Persistence Watchdog 2)
   • Wpsupdate.exe (Persistence Watchdog 3)
3. Process killing: Terminates these processes using the TerminateProcess API to release their file locks.
4. File wipe: Once the processes are dead, calls DeleteFileW on the dropped payloads, removing the WPS, Microsoft Edge, and root explorer.exe files.

3.5 Path enforcement logic

Upon execution without arguments (the standard behavior when a user double-clicks a downloaded file), Explorer.exe calls GetModuleFileNameW to retrieve its current full path on disk. It then compares this string against a hardcoded target path:

C:\Users\%USERNAME%\explorer.exe

This comparison creates a critical fork in the execution flow:

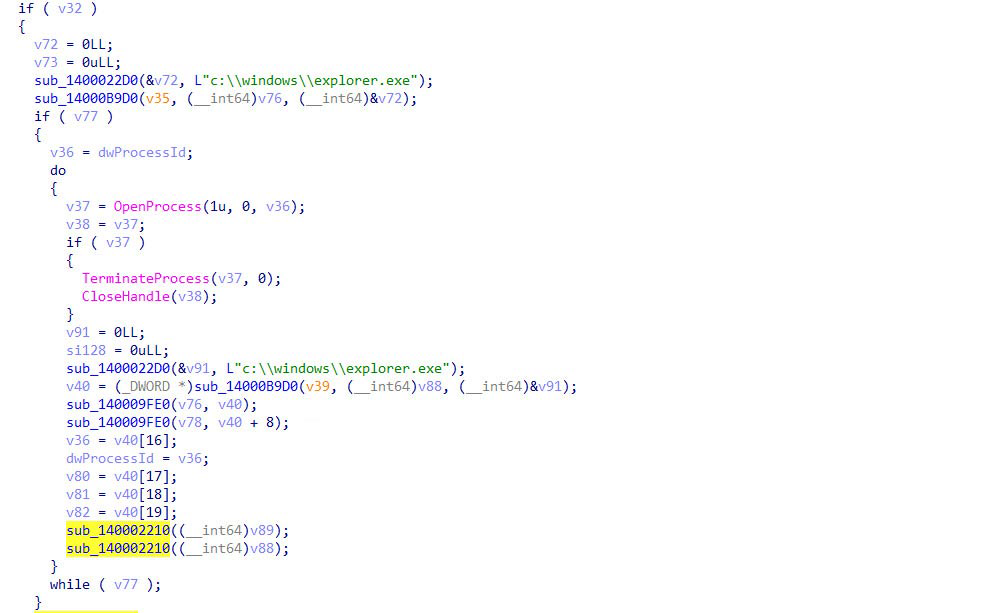

Figure 4: Path-enforcement logic targeting the real Explorer path.

1. The Match Condition (Already Installed): If the current path matches the target path, the malware assumes it is successfully installed. It then re-launches itself with the argument 002 Re:0 to begin the active infection phase.

2. The Mismatch Condition (New Infection): If the path does not match (e.g., the user ran the installer from Downloads or Desktop), the malware enters the setup phase — it identifies the target destination, copies itself to the target path using CopyFileW, executes the new copy, and immediately calls exit(0) to terminate the original process.

3.6 Resource management and payload extraction

Explorer.exe acts as a self-contained carrier for the entire infection suite. It does not rely on downloading payloads from a remote C2 server.

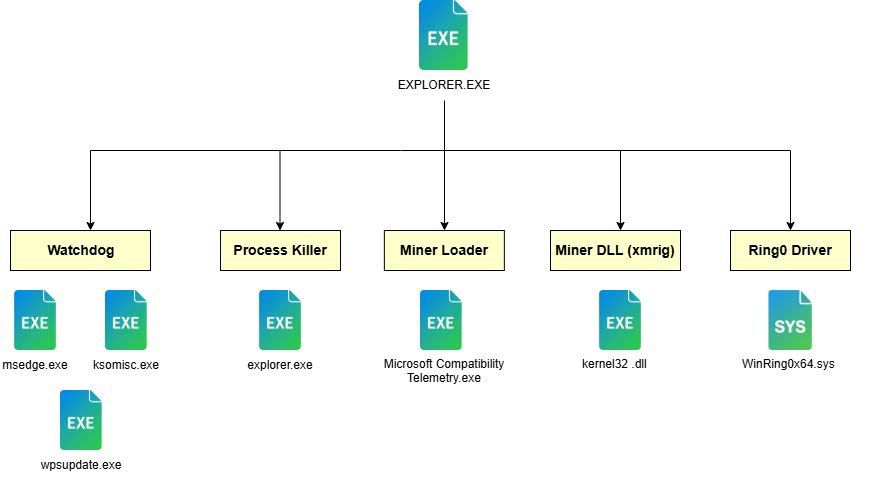

Figure 5: Overall file inventory of the infection suite.

The payload is stored within the binary PE Resource Section under the ID BIN (Resource ID 120). The malware uses standard Windows APIs FindResourceW, LoadResource, and LockResource to access this data blob in memory. The loaded resource is a compressed archive — function sub_14000AA20 decompresses this blob.

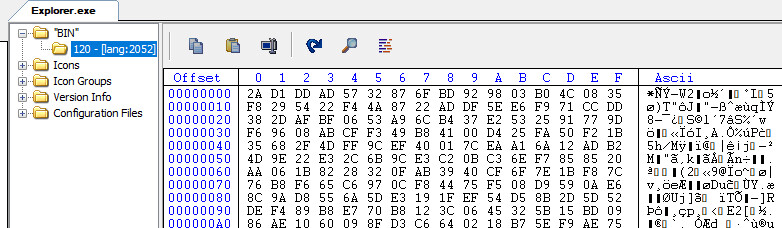

Figure 6: PE resource section view.

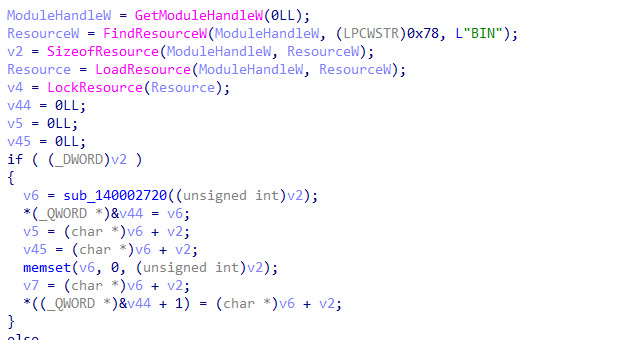

Figure 7: Resource data decryption routine sub_14000C0A0.

Once decompressed, the data blob is split into seven distinct files, which are written to disk:

Immediately after writing these files to disk, Explorer.exe calls SetFileAttributesW to apply FILE_ATTRIBUTE_HIDDEN | FILE_ATTRIBUTE_SYSTEM. This renders the files invisible to the user unless “Show hidden files” and “Show protected operating system files” options are explicitly enabled in Windows Folder Options.

3.7 The main orchestration loop

Once the payload is dropped and the environment is mapped, Explorer.exe (running in 002 Re:0 mode) enters its main orchestration loop (sub_14000D330) — an infinite loop that serves as the heartbeat of the infection, maintaining the state of the botnet node. The loop uses GetTickCount64 to seed a custom random number generator. Based on this timer, the malware randomly launches one of its Keepers:

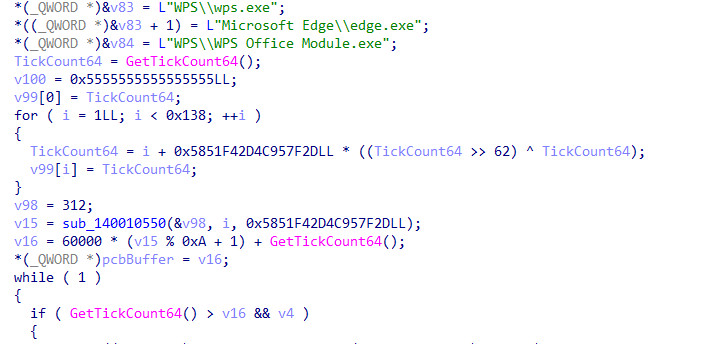

Figure 8: Randomization algorithm seeded by GetTickCount64.

• C:\Users\%USERNAME%\Microsoft Edge\edge.exe
• C:\Users\%USERNAME%\WPS\WPS Office Module.exe
• C:\Users\%USERNAME%\WPS\wps.exe

These Keepers are clones or specific variants of the controller designed to execute the command explorer.exe 016 immediately, creating a self-reinforcing loop:

• Scenario A (main crash): If Explorer.exe crashes or is terminated, the next scheduled run of edge.exe (Keeper) will execute explorer.exe 016, which checks the miner and restarts the main logic if necessary.
• Scenario B (keeper death): If the user deletes or kills edge.exe, Explorer.exe (which is running independently in its loop) will simply re-launch or re-drop it during its next loop iteration.

This “Circular Watchdog” topology makes the malware extremely difficult to remove. A user must terminate all components almost simultaneously to stop the cycle.

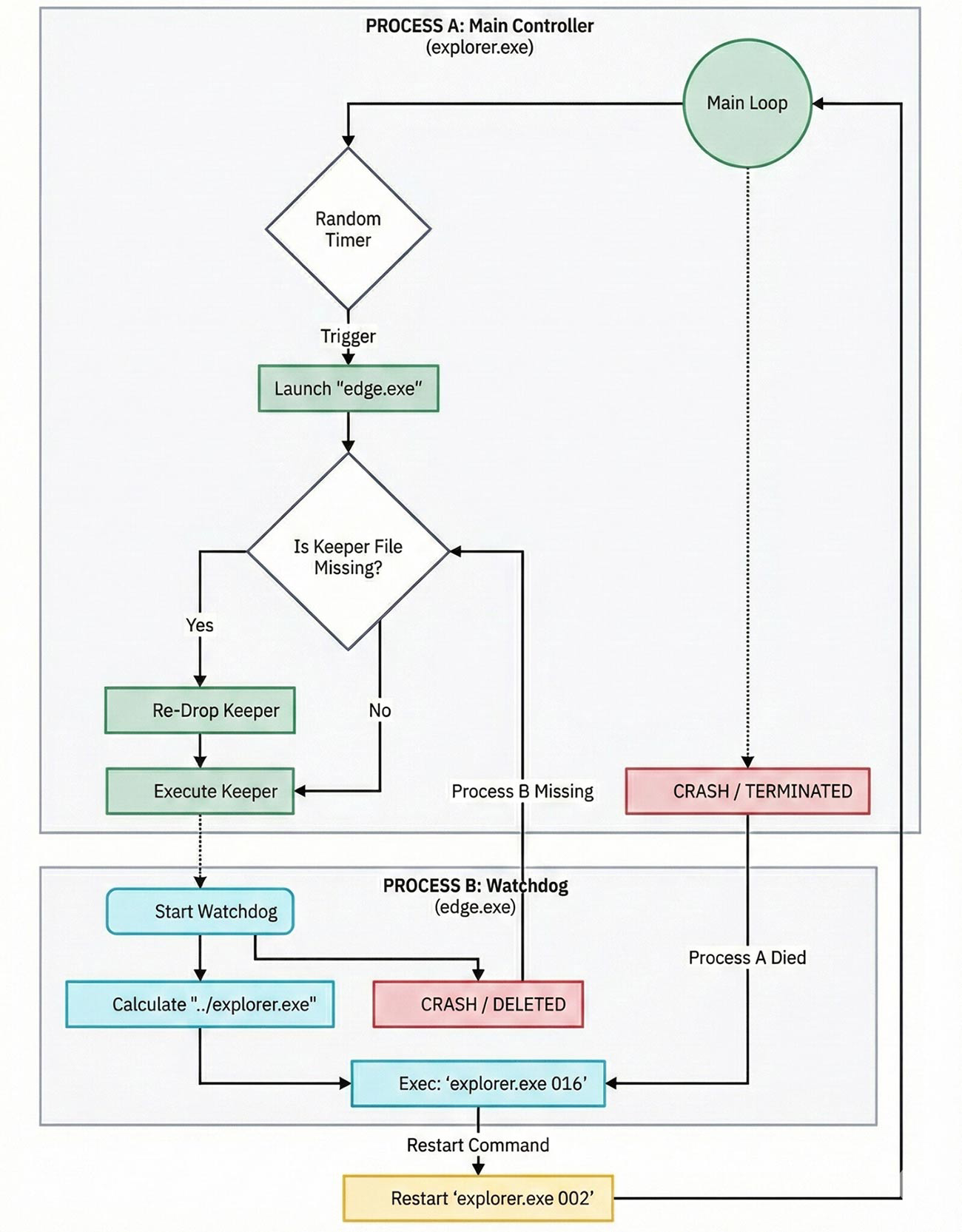

Figure 9: Circular dependency flowgraph of the watchdog topology.

3.8 Lateral propagation: The worm module

A distinguishing feature of this XMRig variant is its aggressive propagation capability. It does not rely solely on the user downloading the dropper; it actively attempts to spread to other systems via removable media, transforming the malware from a simple trojan into a worm.

The functions sub_1400132E0 and sub_14000E090 contain the logic for the worm module. It creates a Hidden Window using CreateWindowExW with SW_HIDE. Instead of polling the system for new drives (which consumes CPU and generates detectable I/O noise), the malware registers a passive listener using RegisterDeviceNotificationA.

It configures a DEV_BROADCAST_DEVICEINTERFACE filter to listen for the WM_DEVICECHANGE (0x219) message, specifically waiting for the DBT_DEVICEARRIVAL (0x8000) event code, which the Windows kernel broadcasts to all top-level windows when a device is inserted.

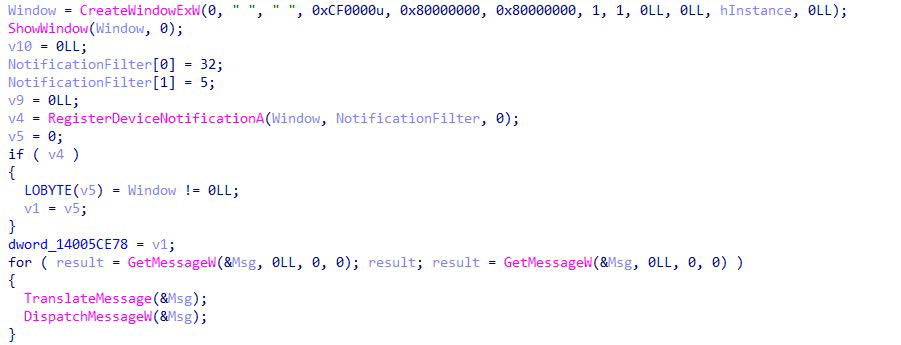

Figure 10: Listener for the WM_DEVICECHANGE event (537).

When a device insertion event is detected, the malware inspects the dbcv_devicetype. It specifically looks for type 2 (DBT_DEVTYP_VOLUME), which corresponds to logical storage volumes like USB flash drives or external hard disks.

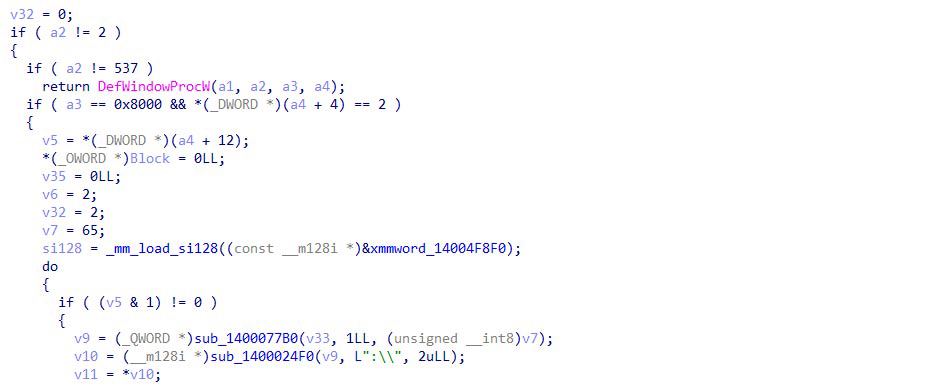

Figure 11: Code block sub_1400132E0 handling the worming logic.

The infection routine typically involves copying the explorer.exe binary to the USB drive, creating a hidden folder for the payload, and creating an LNK (shortcut) exploit masquerading as the drive icon to trick the user into executing the malware when they open the USB drive on a different computer.

3.9 UI spoofing — Icon tamperer via registry manipulation

This function is a specific Stealth Toggle designed to manipulate the visual appearance of files in Windows Explorer. Its goal is to make malicious Shortcut (.lnk) files look indistinguishable from legitimate Executables or Documents by removing the small curved arrow overlay in the bottom-left corner of its icon.

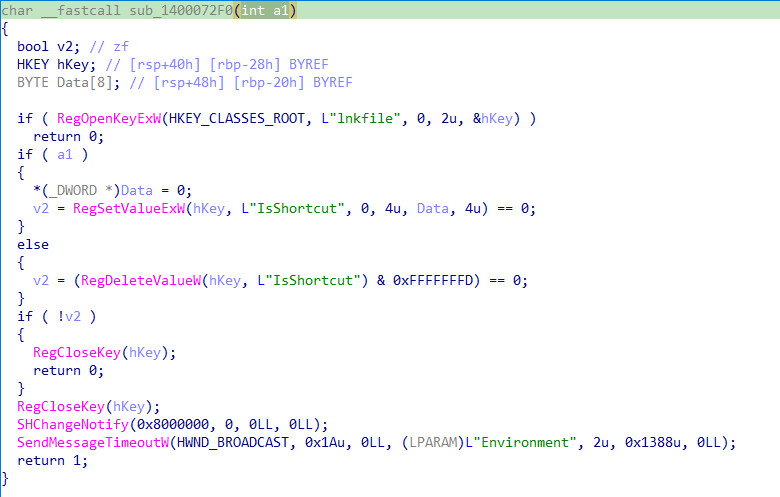

Figure 12: Icon tampering via registry manipulation.

The code branches based on the input:

This function is used at two specific lifecycle stages:

1. Infection phase: Called with 0 (Hide). Prepares the environment before the malware creates any malicious shortcuts on the drives via the Worm module. Ensures the user won’t see the “Shortcut Arrow” warning sign on newly infected files.
2. Cleanup phase: Called with 1 (Restore). After the malicious payload executes, the code attempts to cover its tracks, followed by the File Deletion Loop calling DeleteFileW repeatedly to leave no evidence.

Figure 13: Cross-references to the icon tamperer function.

4. The watchdogs: Strategic redundancy

To ensure the malware survives attempts at removal, the attacker drops three distinct executables in subfolders masquerading as legitimate software:

1. C:\Users\%USERNAME%\Microsoft Edge\edge.exe [SHA256: 705e3be6bab0b0773e89de02dc53e4947db65a41d93cfe2b592b43fd3d2f4f74]
2. C:\Users\%USERNAME%\WPS\wps.exe (or wpsupdate.exe) [SHA256: 69c8c640f35d3f23f8e2997770833f99652a36c5c9c6f6354b021ba3eab93257]
3. C:\Users\%USERNAME%\WPS\ksomisc.exe [SHA256: ebdfb99d7125311dfa8261bb7a98e2e415d15d67369f923f31fb27e36d446ec9]

Binary differentiation (BinDiff) analysis confirmed they are functionally identical. Despite having different filenames and icons, the compiled code, entry point logic (sub_140001410), and string structures are exact matches. The attacker compiled a single “Trigger” payload and renamed it multiple times to create a redundant safety net.

5. The ghost enforcer: explorer .exe

The Explorer.exe acts as the Main Controller and persistence engine, managing the infection lifecycle and monitoring system health. It spawns explorer .exe [SHA256: 51b98f8fb38e822245a1b22864652d7d091dd2f52424786051cbc8131b7e782b], which functions as a transient Process Killer designed to terminate processes.

The handshake happens via ShellExecuteExW, passing a list of target process names as command-line arguments. explorer .exe (killer) then resolves these names to PIDs, terminates them, and immediately exits — operating on a “fire-and-forget” basis.

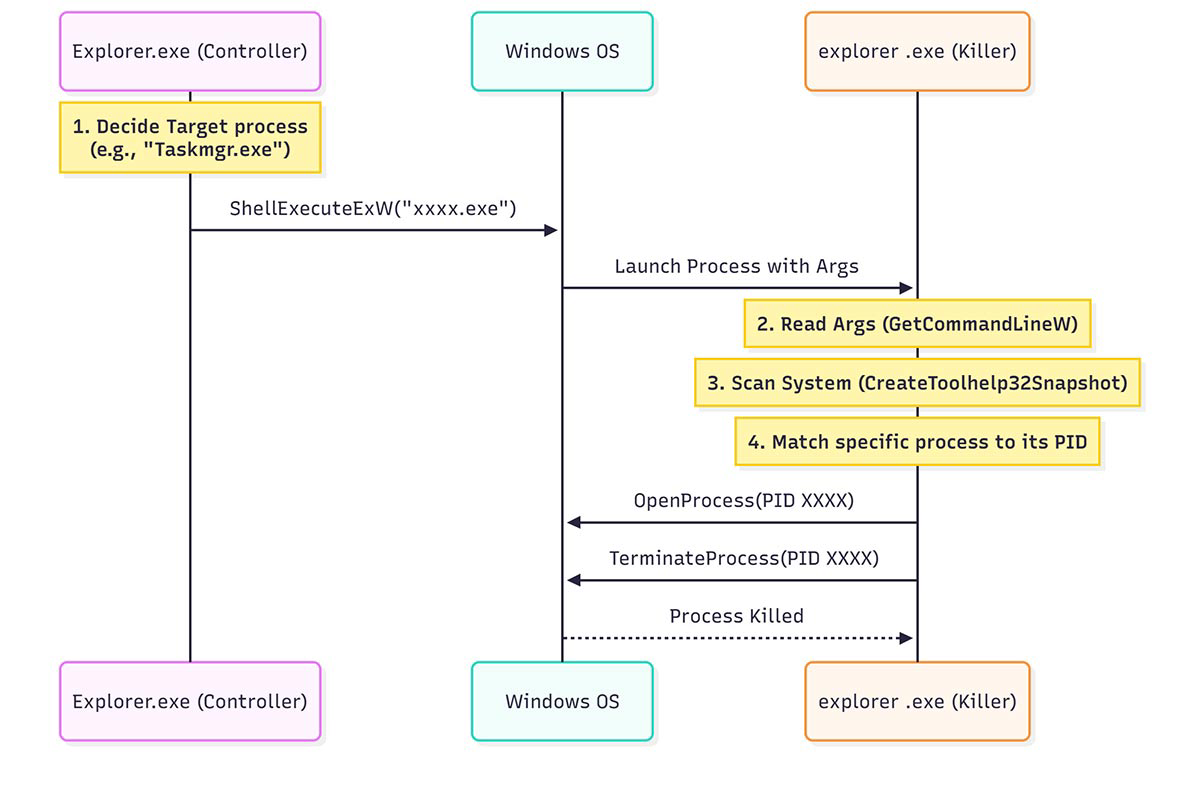

Figure 14: Handshake flowgraph between the controller and the killer.

6. Microsoft Compatbility Telemetry.exe — The payload wrapper

The ultimate goal of the campaign is to run the XMRig miner. However, running the standard xmrig.exe is a guaranteed way to trigger antivirus detection. To avoid this, the attackers employ a sophisticated wrapping and sideloading technique.

6.1 The Microsoft Telemetry masquerade

The mining process is named Microsoft Compatbility Telemetry.exe [SHA256: 5936ae20028b79e3ebb58f863960e56f93aed4e7a07f0b39a80205a8a7df5579].

• Typosquatting: Note the missing ‘i’ in “Compatbility”. The legitimate Windows binary is CompatTelRunner.exe, often described in Task Manager as “Microsoft Compatibility Telemetry.”
• Visual camouflage: By adopting a name that is visually similar to a known, high-noise Windows system process, the malware hopes to blend in. Users are accustomed to seeing “Telemetry” processes consuming resources, so they may overlook the miner’s activity.

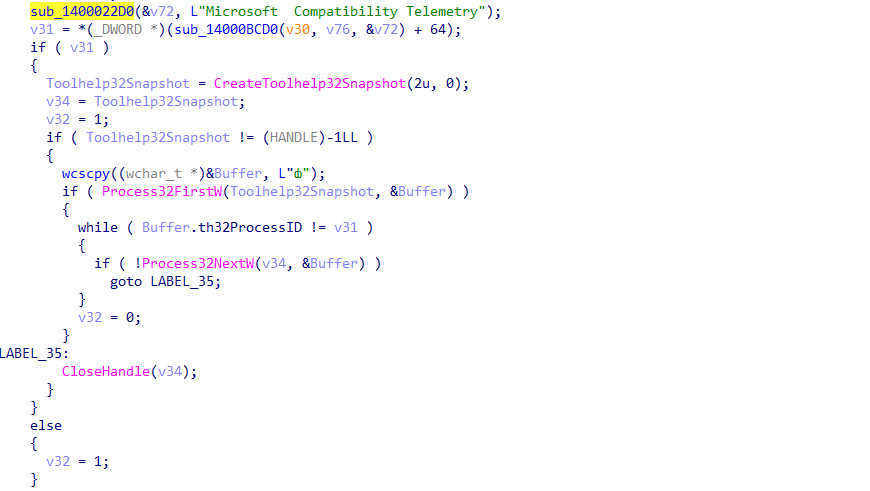

Figure 15: Check for the Microsoft Compatbility Telemetry.exe process.

6.2 DLL sideloading and the “Kernel32” trick

The executable Microsoft Compatbility Telemetry.exe does not contain the mining code itself — it is a “dumb” loader. Analysis reveals it uses DLL Sideloading to load the actual payload. Here, the “Space Trick” appears again: the malware attempts to load a DLL named kernel32 .dll (with a space).

This fake DLL is actually the XMRig miner compiled as a dynamic library. The loader then calls GetProcAddress to find the exported function xmrig_main.

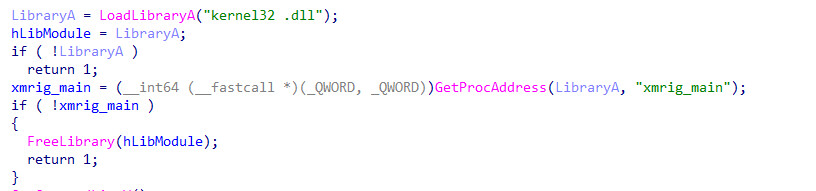

Figure 16: XMRig DLL sideloading.

6.3 Argument parsing and execution

The wrapper acts as a translator. It takes the arguments passed to the EXE (e.g., --coin XMR --url xmr-sg.kryptex.net) and converts them into the format expected by the XMRig DLL. This decoupling of the loader and the miner allows the attackers to easily swap out the mining DLL (e.g., updating the XMRig version) without changing the persistent loader executable.

7. Deep dive: Kernel mode exploitation (BYOVD)

The most technically sophisticated component of this malware is its use of the Bring Your Own Vulnerable Driver (BYOVD) technique. This allows the user-mode miner to execute code with Kernel (Ring 0) privileges, bypassing the operating system’s hardware abstraction layer.

7.1 The target: WinRing0x64.sys

The malware drops a driver file named WinRing0x64.sys. This is a legitimate driver component of the “OpenLibSys” library, historically used by hardware monitoring tools (like Core Temp or MSI Afterburner) to read CPU temperatures and fan speeds.

However, version 1.2.0 of this driver contains a critical vulnerability assigned CVE-2020-14979.

In its DriverEntry routine, the driver creates a device object (\Device\WinRing0_1_2_0) but fails to apply a restrictive Security Descriptor (SDDL). It creates the device with a NULL DACL (Discretionary Access Control List). This means any user on the system, regardless of privilege level, can open a handle to this driver and send it commands. Since the driver is designed to read/write specific CPU registers, this effectively gives any user full control over the CPU’s low-level configuration.

7.2 The exploit chain

The integration of this exploit into the XMRig payload is visible in the function sub_1802981C0 within the malicious DLL:

1. Service creation: The malware calls CreateServiceW with the argument SERVICE_KERNEL_DRIVER (0x1), pointing the service to the dropped WinRing0x64.sys file.
2. Driver loading: Calls StartServiceW, forcing the Windows kernel to load the vulnerable driver.
3. Communication channel: Calls CreateFileW(L"\\\\.\\WinRing0_1_2_0",...) to open a handle to the driver. Due to CVE-2020-14979, this succeeds.
4. IOCTL transmission: The miner uses DeviceIoControl to send specific Input/Output Control (IOCTL) codes to the driver.

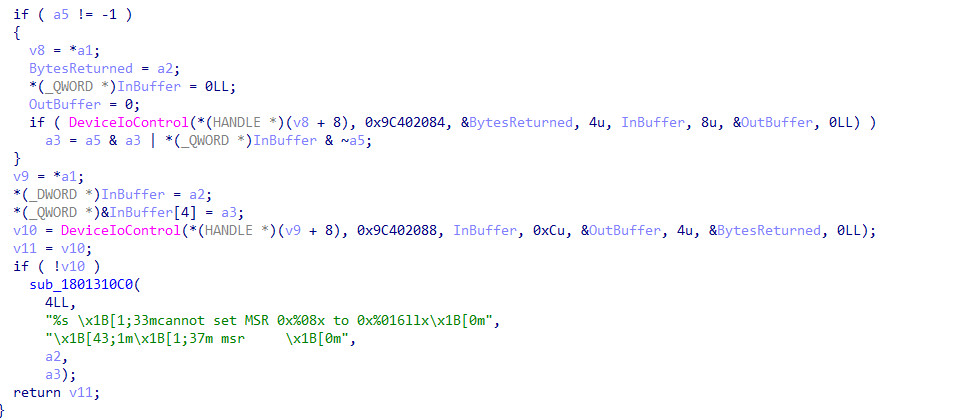

Figure 17: IOCTL transmission code.

7.3 MSR modification and hashrate boosting

The ultimate goal of this kernel excursion is to modify the Model Specific Registers (MSRs) of the CPU.

The RandomX mining algorithm used by Monero is designed to be “ASIC-resistant” and CPU-friendly. It relies heavily on random access to the CPU’s cache memory. Modern CPUs have features called Hardware Prefetchers — components that predict what data the CPU will need next and fetch it from RAM into the L2/L3 cache.

• The Problem: For standard programs (linear access), prefetchers are great. For RandomX (random access), prefetchers are detrimental. They fill the valuable cache with predicted data that is never used, evicting the actual mining data and causing “cache thrashing.”

• The Solution (The Exploit): The malware sends the IOCTL code 0x9C402088 (Write MSR) to the driver. The data packet contains the instruction to write to the MSR_PREFETCH_CONTROL register (Address 0x1A4 on Intel CPUs).

• The Result: The command disables the “L2 Hardware Prefetcher” and “L2 Adjacent Cache Line Prefetcher.” Tests indicate this optimization increases the RandomX hashrate by 15% to 50%.

By utilizing BYOVD, the malware achieves this optimization without needing to write its own malicious driver (which would require a valid digital signature to load on modern Windows). It simply piggybacks on the valid signature of the old, vulnerable WinRing0 driver.

8. Threat intelligence and attribution

8.1 Infrastructure and monetization

The campaign utilizes the Kryptex mining pool (xmr-sg.kryptex.net).

• Mining pool: xmr-sg.kryptex.network:8029. Kryptex is a consumer-grade mining platform that pays out in fiat or Bitcoin, popular among entry-level cybercriminals for its ease of laundering.
• Wallet: 42DKy5tDGH5MjwWDw2nAj7ZydTsX43cxM5T7zfjPezaEav51eALbqQhDo6ZUgF58tA3s28LnvSTUKTdAZUtqcGXsTBZrDfH. Due to Monero’s ring signatures and stealth addresses, the balance and transaction history are opaque, making the proceeds untraceable.

8.2 Campaign status

The threat actor is currently testing the infection chain and persistence mechanisms on a small number of machines before a wider distribution. The pool reports 1 active worker (identified as “a”) with a 24-hour average hashrate of approximately 1.24 KH/s.

Historical data shows sporadic mining activity throughout November 2025, with a distinct spike in activity beginning on December 8, 2025. This correlates with the analysis timeline, suggesting either a fresh deployment of the campaign or the activation of new nodes.

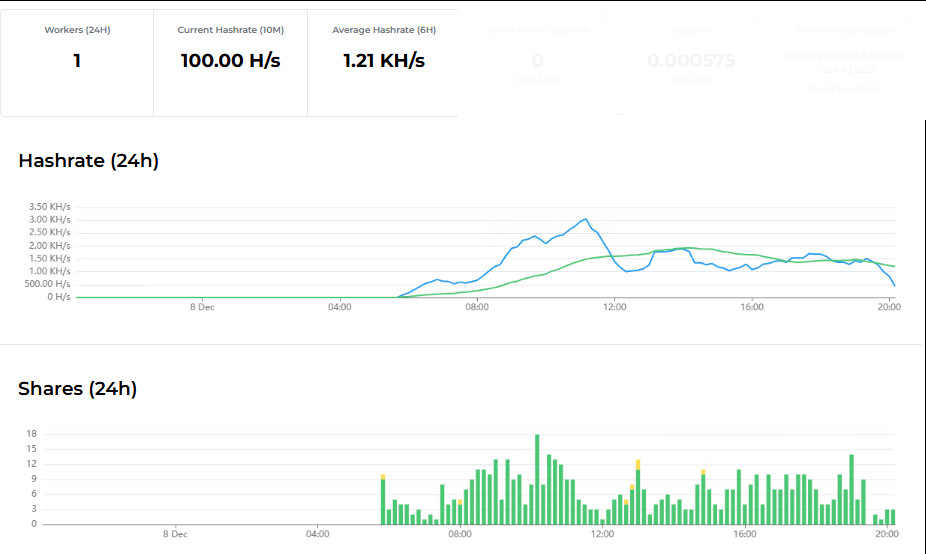

Figure 18: Kryptex pool statistics showing the spike on December 8, 2025.

9. Conclusion

This campaign serves as a potent reminder that commodity malware continues to innovate. By chaining together social engineering, legitimate software masquerades, worm-like propagation, and kernel-level exploitation, the attackers have created a resilient and highly efficient botnet. The use of the BYOVD technique, in particular, highlights a critical weakness in modern OS security models: the trust placed in signed drivers. As long as legacy drivers with known vulnerabilities remain validly signed and loadable, attackers will continue to use them as keys to the kingdom, bypassing the sophisticated protections of Ring 3 to operate with impunity in the Kernel.

10. Trellix protection and mitigation

Trellix has implemented comprehensive protection and mitigation measures against this cryptojacking campaign and its associated components. Our security solutions include coverage for all known executables, including the malicious controller, the XMRig payload wrapper, and the BYOVD exploit chain. This proactive approach aims to safeguard our customers by detecting the infection at the dropper stage and neutralizing the persistence mechanisms.

11. CISO recommendations: Strengthening defense

Neutralize the “BYOVD” Vector: Enforce Microsoft’s Vulnerable Driver Blocklist (via Windows Defender Application Control or HVCI). This prevents known-vulnerable drivers, such as the WinRing0x64.sys used in this campaign, from ever loading into the kernel.

Leverage ENS device control: The “worm” component of this campaign relies on physical propagation via USB drives. Ensure your Trellix ENS policies include Device Control measures to automatically scan or restrict removable media.

Unify network & endpoint defense: Capitalize on Trellix Endpoint Security Web Control to block outbound connections to consumer-grade mining pools. Configure Block and Allow List policy to explicitly deny access to known mining domains (e.g., xmr-sg.kryptex.network) and enforce Web Category Blocking for high-risk categories.

Address the human element: Since the infection vector is socially engineered pirated software, reinforce security awareness training regarding software sourcing.

Appendix A — Indicators of compromise

Appendix B — Trellix detection signatures

Appendix C — MITRE ATT&CK
